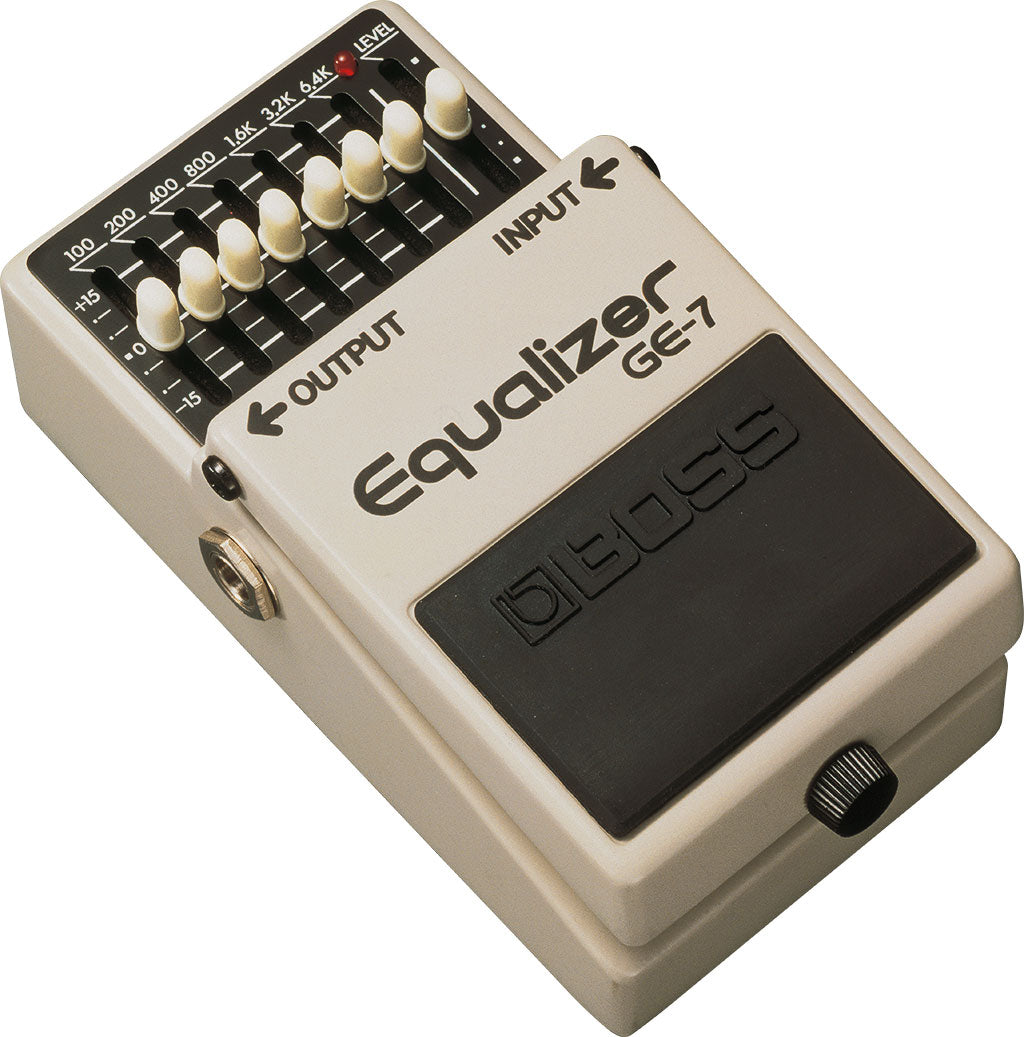

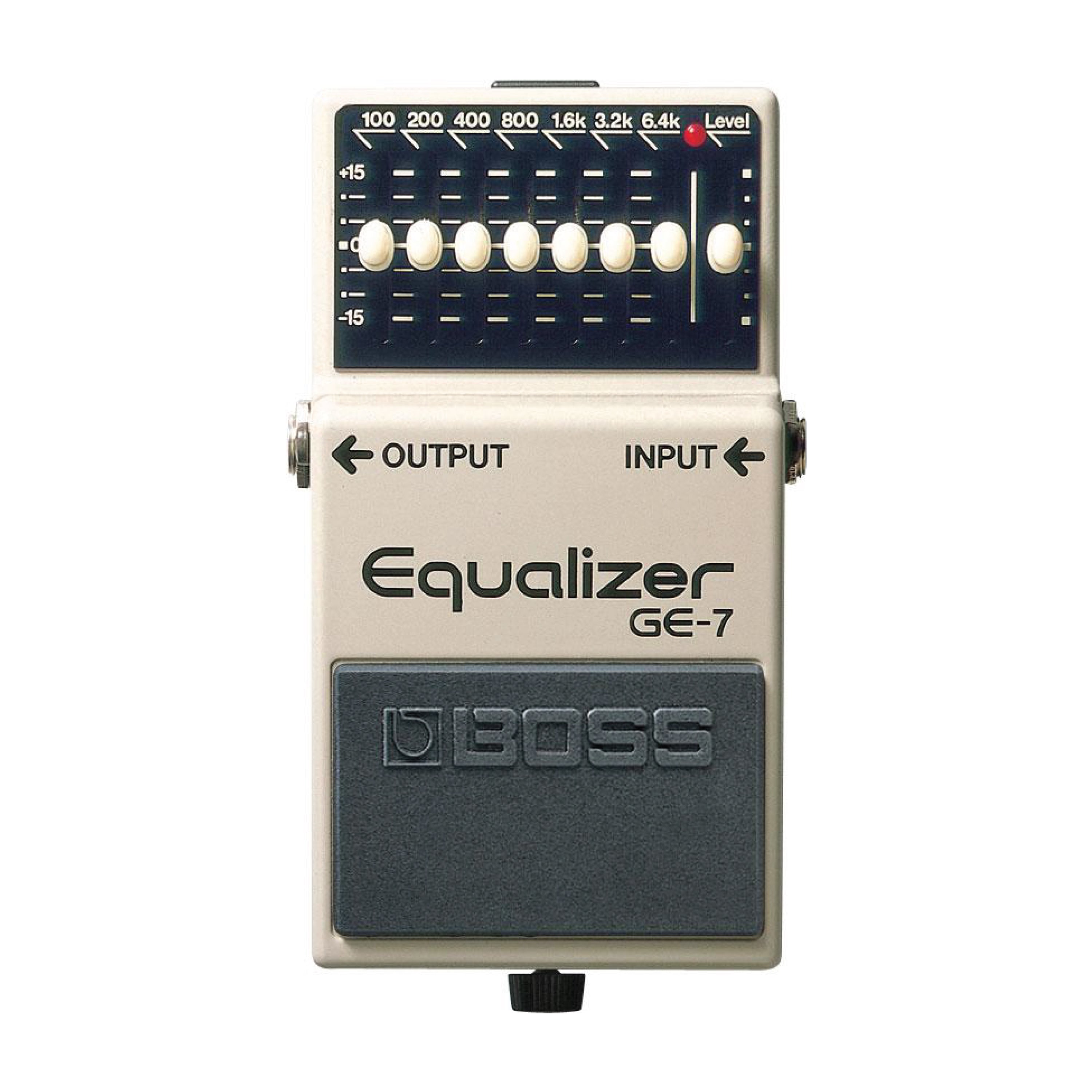

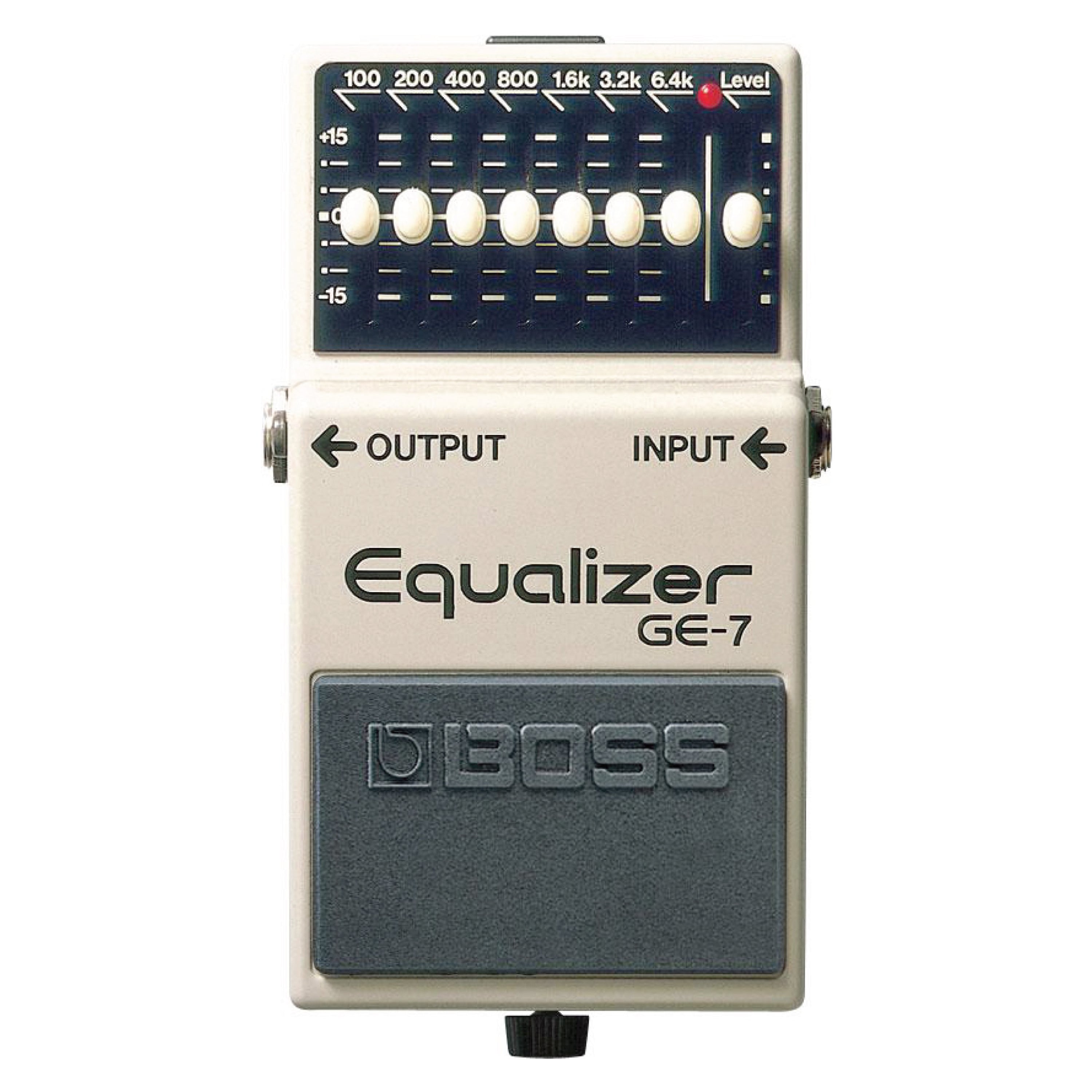

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.
- Compact EQ pedal with 7 bands of adjustable EQ sliders
- Allows for boost/cut of up to +/- 15dB per band
- Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
Nominal Input Level-20 dBuInput Impedance470 k ohmNominal Output Level-20 dBuOutput Impedance1 k ohmRecommended Load Impedance10 k ohm or greaterBypassBuffered bypassControlsLevel Control knob
Equalizer Control knob
100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
Pedal switchIndicatorCHECK indicator (Serves also as battery check indicator)ConnectorsINPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jackPower SupplyCarbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
