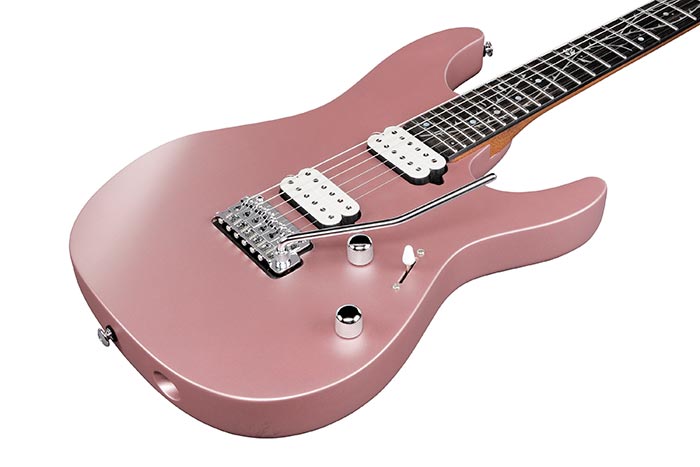

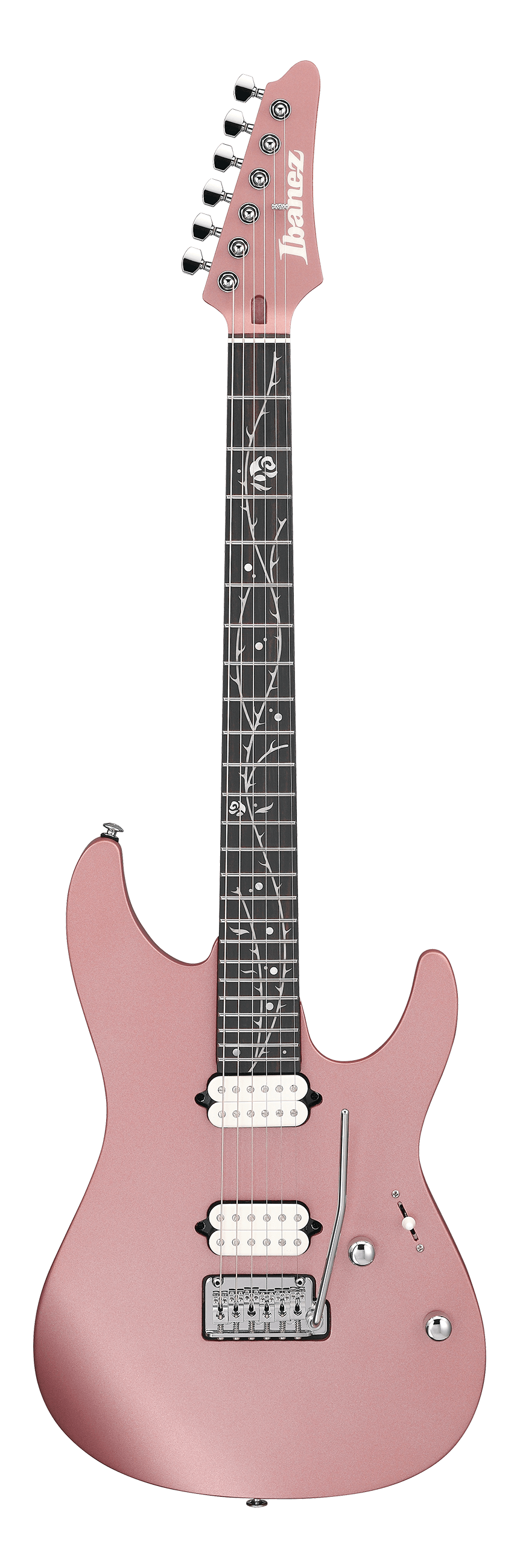

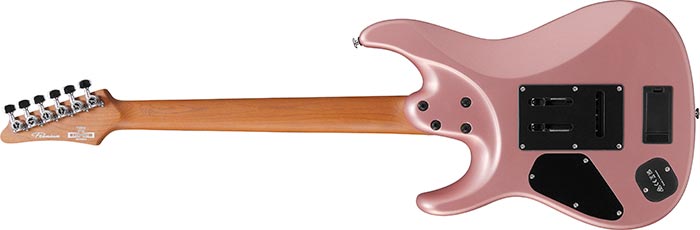

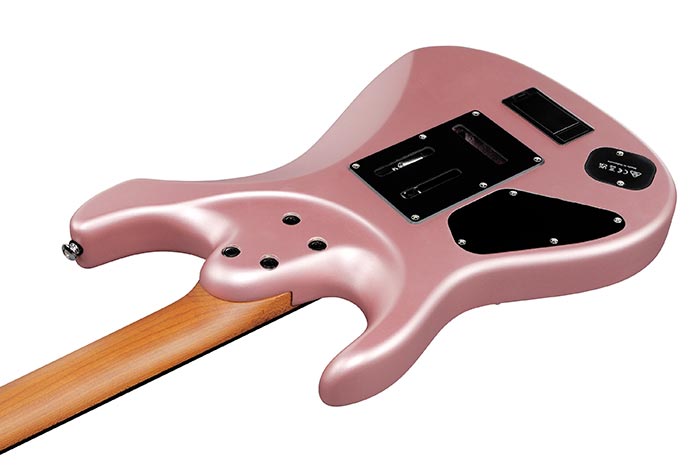

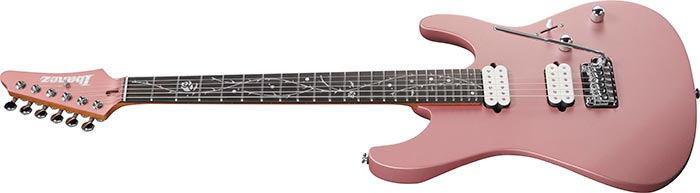

Ibanez Tim Henson TOD10 (Metallic Mauve)
The Dallas, TX-based instrumental outfit has just re-released their debut full-length, Muse, on Equal Vision Records. The album was originally self-released as an independent artist and is now available as a re-mastered, re-packaged release through the label. The new and improved release also makes Muse available at physical retail locations for the first time. Muse was produced by Nick Sampson [Of Mice & Men, Asking Alexandria] and is also available streaming in full at Polyphia.merchnow.com.
Upon its initial release last September, the full-length self-titled landed on several Billboard Charts including: No. 5 on Internet Albums, No. 6 on Hard Rock Albums, No. 13 on Independen Albums, No. 22 on Top Rock Albums, No. 71 on Top Current Albums, and No. 76 on Top 200.
"Obviously we wanted to write something extremely unique," says guitarist Tim Henson, "but we also wanted it to be accessible in a way that would unite people of different tastes... An album that literally everyone could appreciate." The record contains a variety of material from the euphoric intensity of "87" to the emotional roller coaster "Finale", and also boasts an insane roster of guest artists including Aaron Marshall of Intervals, Canadian solo guitarist Nick Johnston, Jason Richardson of Chelsea Grin, Jakub Zytecki of Disperse, Nick Sampson of I Am Abomination, and Mario Camarena and Erick Hansel of CHON.
-
SPECS
- neck type
- AZ Oval C Roasted Maple neck
- top/back/body
- American Basswood body
- fretboard
- Ebony fretboardTree of Death inlay
- fret
- Jumbo Stainless Steel frets
- number of frets
- 24
- bridge
- Gotoh® T1502 tremolo bridge
- string space
- 10.5mm
- neck pickup
- Fishman® Fluence™ Tim Henson Signature Series (H) neck pickupActive/Alnico
- bridge pickup
- Fishman® Fluence™ Tim Henson Signature Series (H) bridge pickupActive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech®
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 20.5mm at 1F
- d : Thickness
- 22.5mm at 12F
- Radius :
- 305mmR
-

DESCRIPTION
-
-
SWITCHING SYSTEM

DESCRIPTION
-
CONTROLS

DESCRIPTION
-
OTHER FEATURES
- Recommended Case
- MR500C
- Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups
- Gotoh® MG-T locking machine heads
- Luminescent side dot inlay
- Gig bag included
Features

Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

American Basswood body
The American Basswood body delivers a natural and flat tone.

Fishman® Fluence™ Tim Henson Signature Series pickups
Tim's signature Fishman® Fluence™ pickups span the entire range of aggressive lead and rhythm tones to the cleanest of clean single coil combinations, even touching on sounds Tim was previously only able to produce with his acoustic guitars.
Neck Pickup Voice 1: Thick and smooth neck humbucker / Voice 2: Hyper-clean, nylon string surrogate/ Voice 3: Tim's fluid neck single coil
Bridge Pickup Voice 1: Based on Fishman®'s hot-rodded Classic voice, the quintessential lead tone of generation / Voice 2: Combination of Tim's favorite bridge humbuckers / Voice 3: Tim's ideal single coil combination tone when used in conjunction with neck coil

Gotoh® T1502 tremolo
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups
The Voicing switch allows the pickups to switch between three musically complementary voices.

Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
