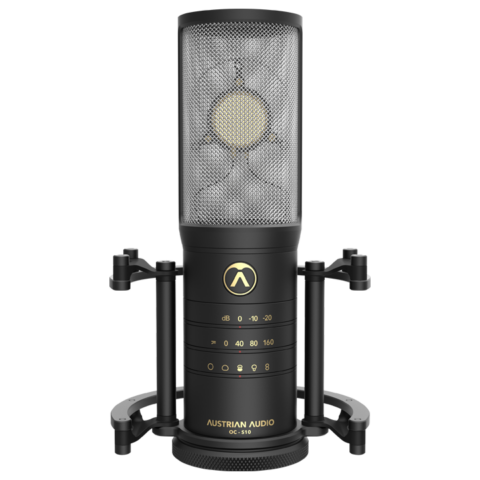

Austrian Audio OC-S10 Reference Large-diaphragm Condenser Microphone
A MASTERPIECE OF SOUND
The OC-S10 is a reference large-diaphragm condenser microphone, meticulously designed for recording lead vocals and solo instruments with unparalleled precision. With five selectable polar patterns, three low-cut filter options, and switchable -10dB and -20dB pads, the OC-S10 offers exceptional versatility to suit any recording scenario. In combination with the dual-output feature (both standard XLR) it provides maximum post-production flexibility, ensuring you can discover and craft your perfect sound.
The included shock mount features a ball-joint connection for precise and delicate positioning, making setup effortless. Additionally, the magnetically attached metal mesh filter (not shown) effectively reduces unwanted plosive sounds while preserving the full richness and detail of the vocal spectrum.
Made in Vienna / Austria.
Technical Specifications
- Directional characteristic (Multi)Omni, Wide Cardioid, Cardioid, Hypercardioid, Figure-of-Eight individual (with Dual Output)
- Frequency range20 Hz - 22 kHz
- Sensitivity (all directions)14 mV/Pa
- Equivalent noise level8 dB SPL (A)
- Max SPL147 dB SPL (157 dB SPL)
- Analog low cut filter40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)
- Switchable pad-10 dB, -20 dB
- Impedance108 Ω (symmetrical)
- Load impedance> 1 kΩ
- Supply voltage48 V (< 3 mA)
- Connectors2x XLR 3 pin
- Dimensions63 x 63 x 205 mm
- Weight710g
