Parts No: 24120-000-55

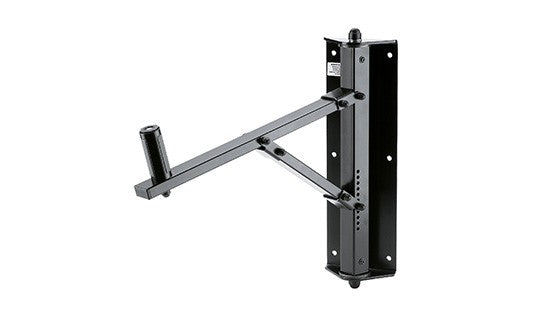

The swivelling and tiltable wall mount holds your speaker at the angle you want. The mount has 11 different tilt settings moving through 22°. The swivel is adjustable to any angle. The patented expanding mandrel for loud speakers with cabinet interiors of diameter from 35 to 37 mm is tightened with a key for a non-wobble and low-resonance speaker fit.
Specifications
Adjustment: Gradual in 11 settings
Angle of Inclination: 0° to 22°
Material: Steel
Max. Load Capacity: 50 kg
Mounting: Attaches to walls
Mounting Bolt: Straddling bearing-anchors diameter 35 to 37 mm x 85 mm
Special Features: Very flexible; patented straddling bearing-anchors;
guarantee effective clamping of speaker in any position; resonance-optimized construction
Swivel: 180°
Type: Black
Wall Plate: 580 x 140 mm
Wall-to-bolt Clearance: 420 mm
Weight: 5.76 kg
