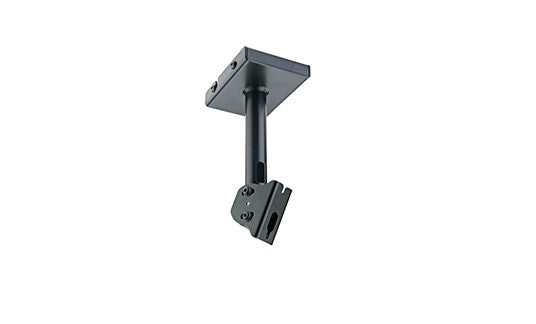

Parts No: 24496-000-55
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other attachment possibilities additional adapter brackets are available. A mounting bracket with side and central cable management makes mounting to the ceiling easier.
Specifications
Adjustment: Stepless
Angle of Inclination: 0° to 45°
Bearing plate: 90 x 47 mm
Ceiling Clearance: 250 mm
Ceiling Mounting Plate: 160 x 118 mm
Material: Steel
Max. Load Capacity: 25 kg
Mounting: Attaches to ceilings
Spacing of holes: From 70 to 76.2 mm
Special features: Easy mounting by convenient hooking in and screw locking; internal cable management
Swivel: 90°
Type: Black
Weight: 1.79 kg
