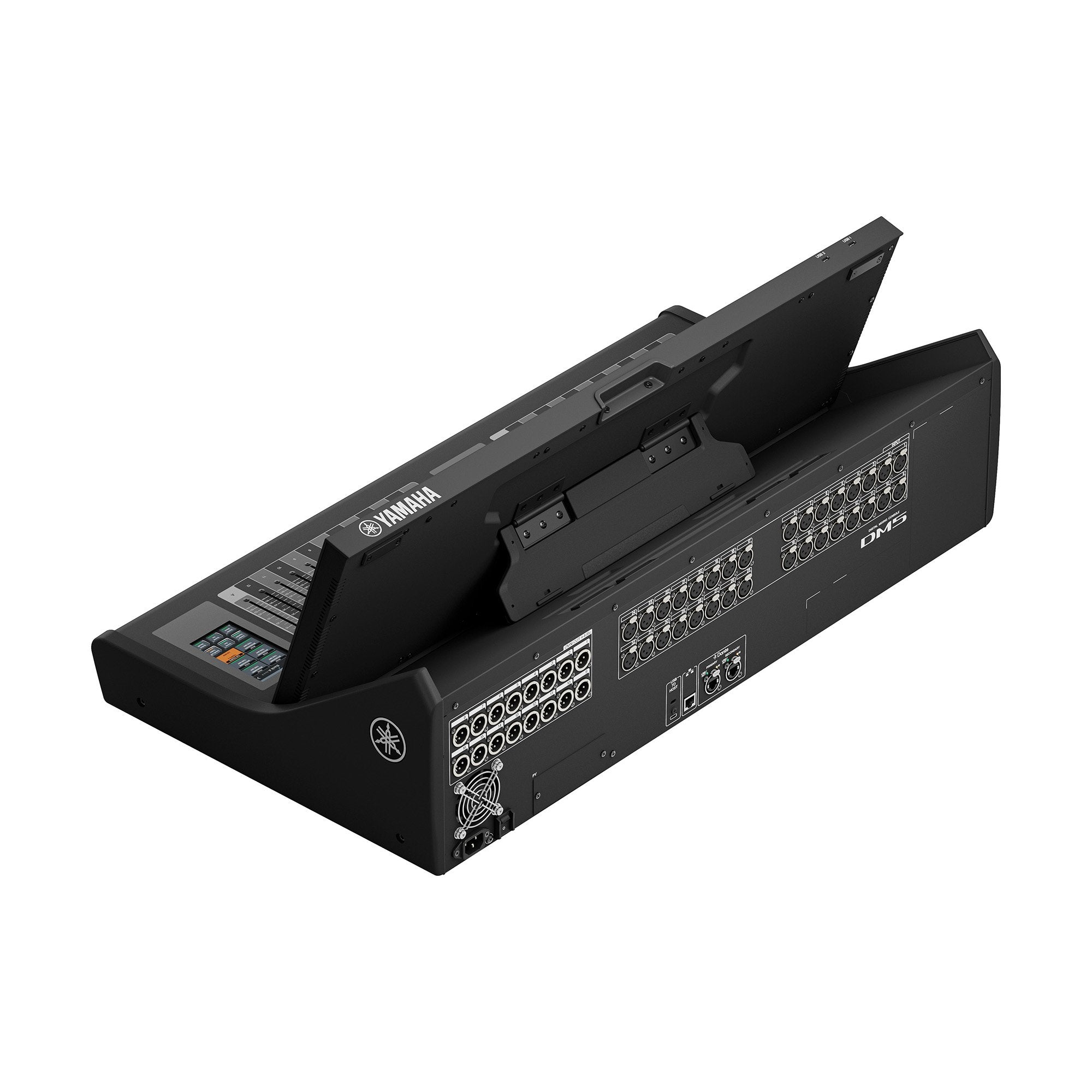

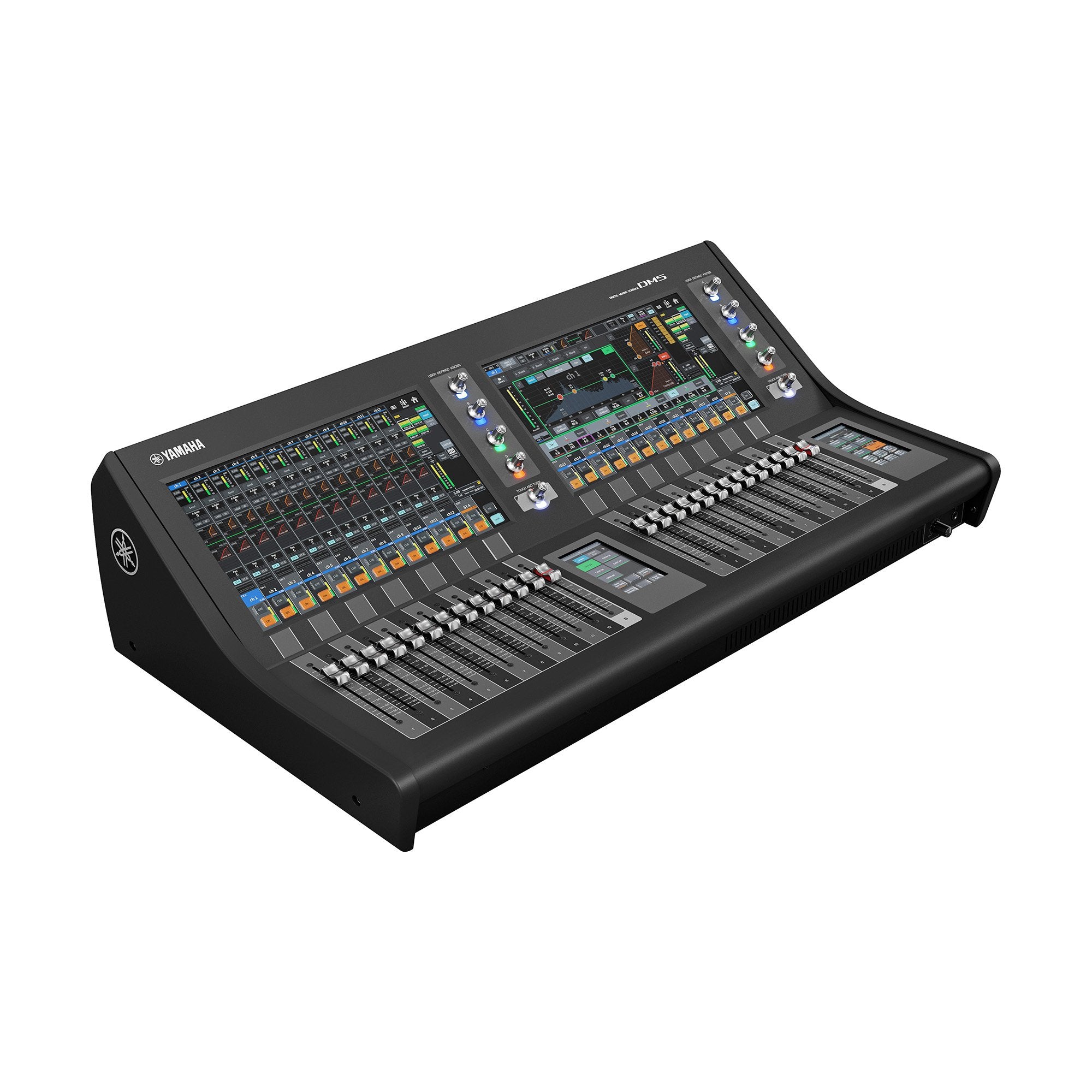

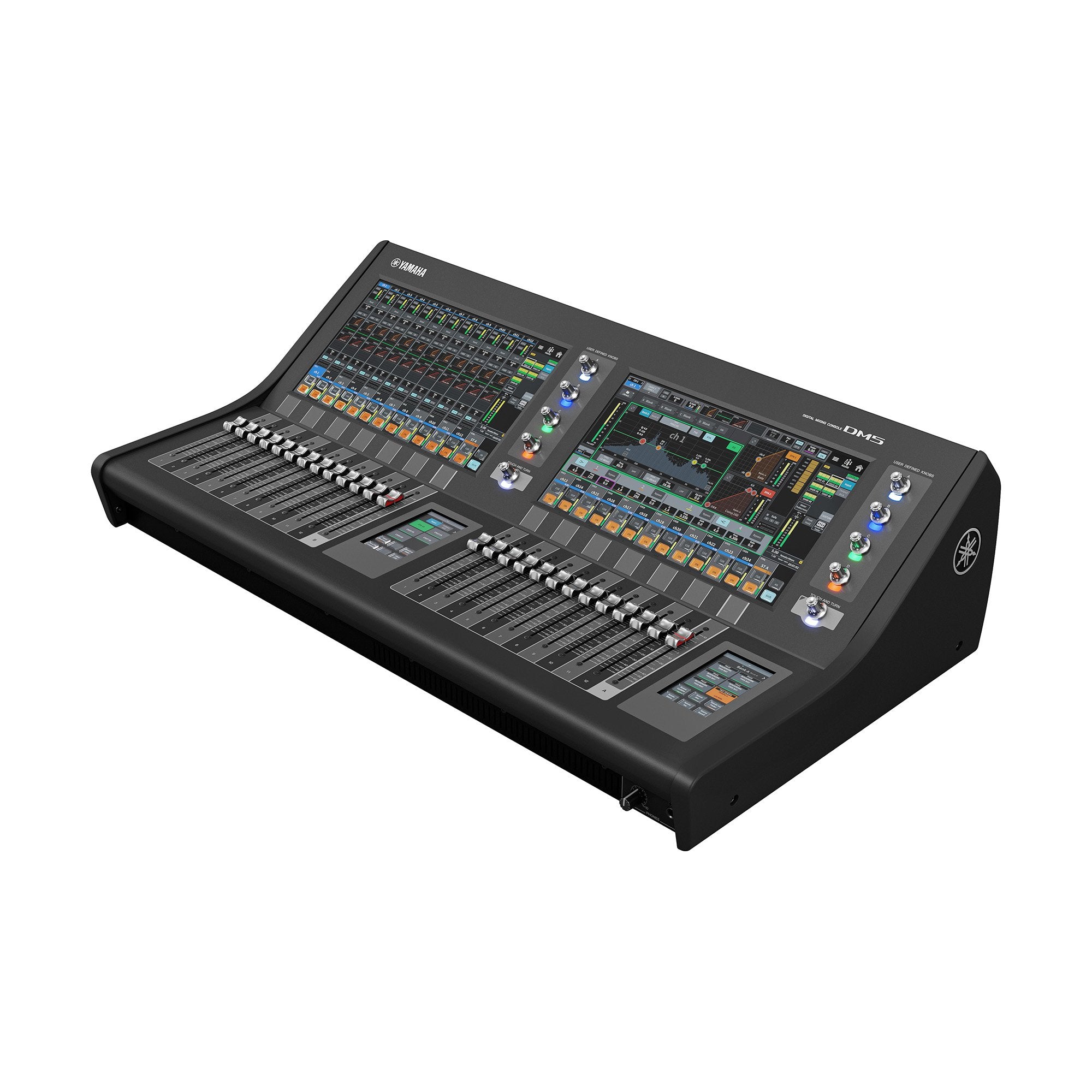

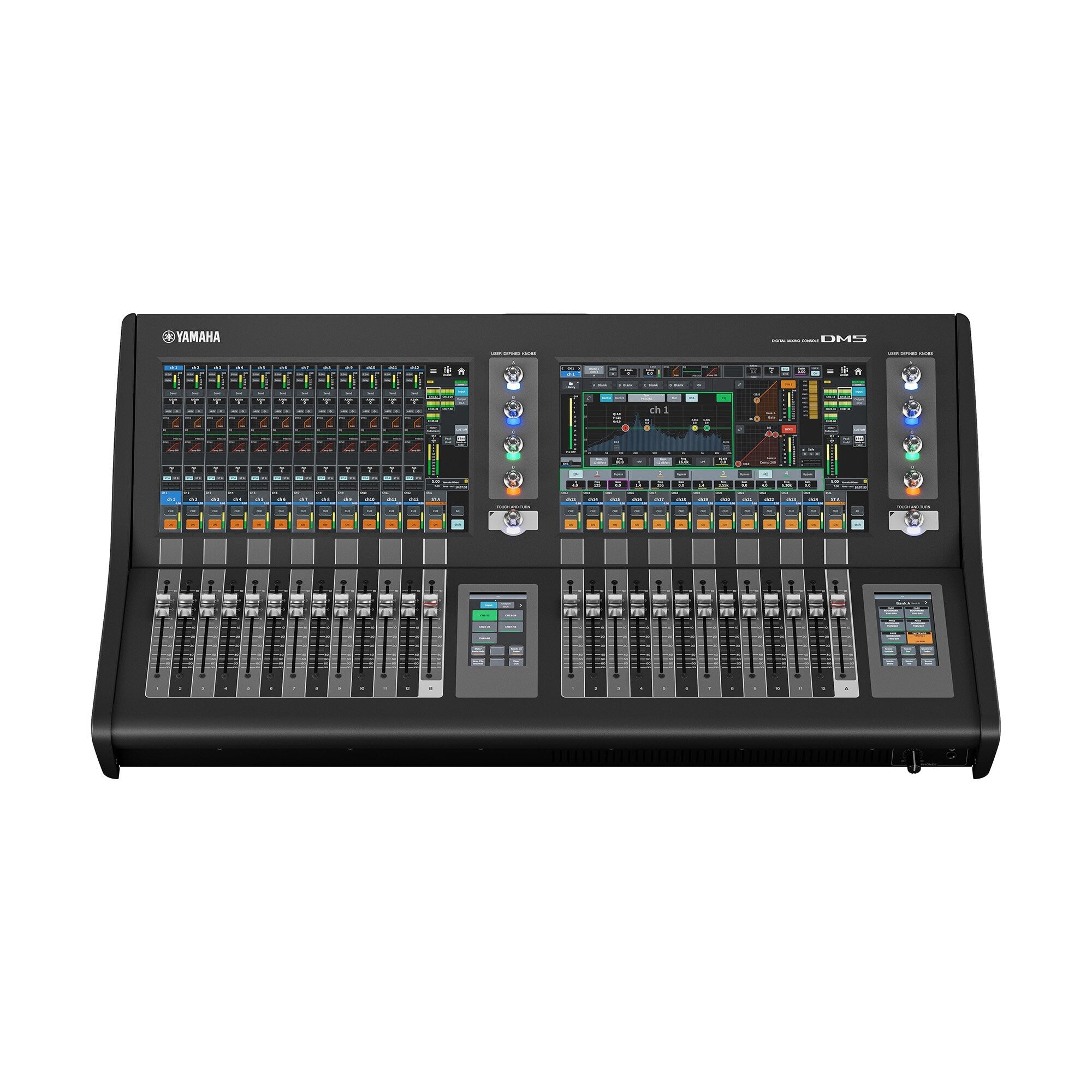

The DM5 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM5 is configured with 26 faders and a 2 x 13.3” + 2 x 4.3” multi-touch screen with glass keys.
- Input mixing channels: 60 mono
- Buses: 24 Mix + 12 Matrix + 2 Stereo
- Display: 13.3" multi-touch screen x 2, 4.3" multi-touch screen x 2
- Faders: 26 (12 + 1 + 12 +1)

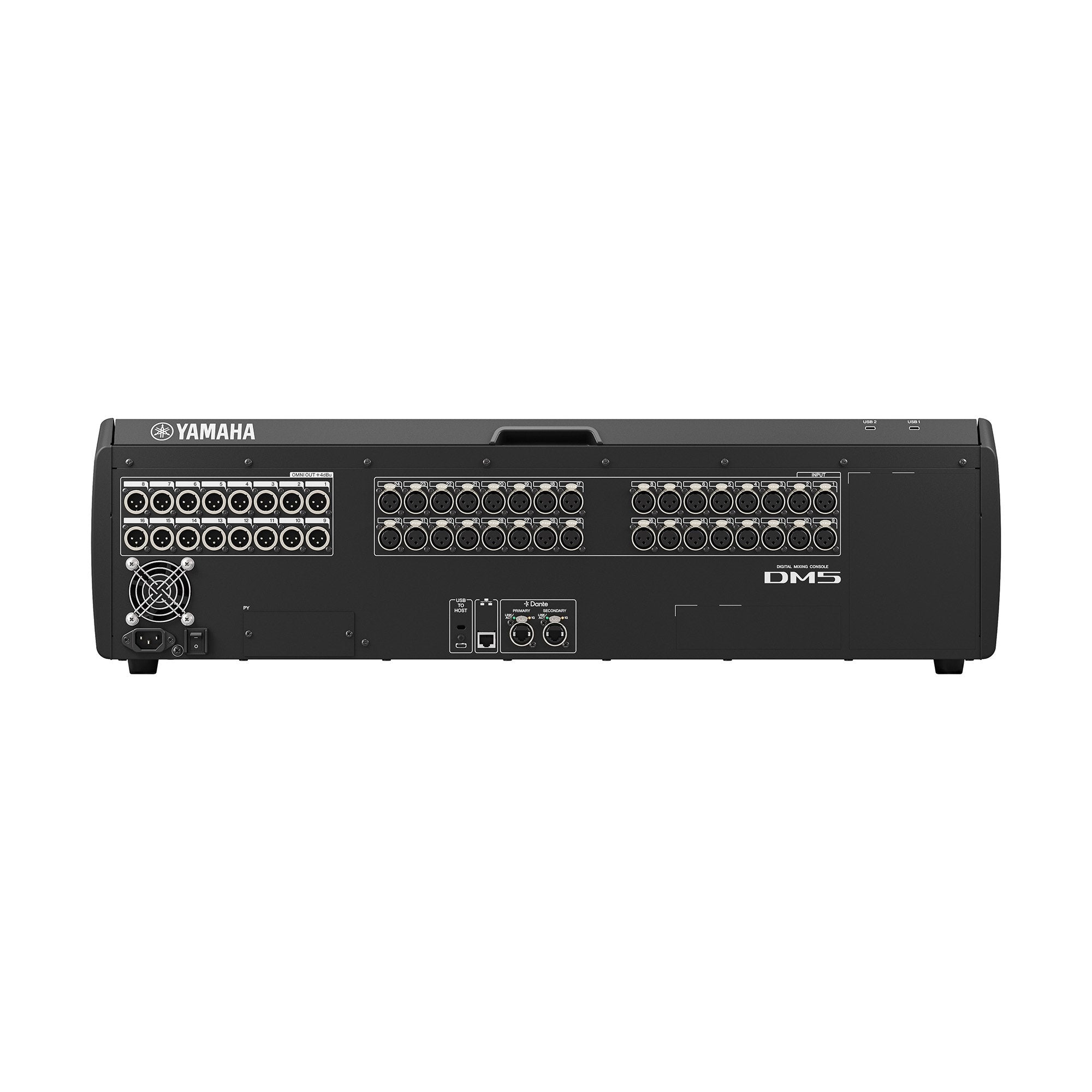

- Analog I/O: 32 inputs / 16 outputs
- Dante: 64 in / 64 out
- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power consumption: 130 W
- Dimensions (W x H x D): 826 mm x 235 mm x 441 mm (32.5” x 9.3” x 17.4”)
- Net Weight: 21.5 kg (47.4 lb)
Forward Thinking
Capture the sound from the stage as-is and overlay the tones you need to bring the artist and audience together. The DM5 series delivers the mix you want every time by bringing speed, certainty, and creativity to the process of building your sound, offering a plethora of functions to support your work in a range of compact formats with polished, intuitive user interfaces. A carefully selected set of controls with freely customizable functions and parameters that elevate your workflow to the next level.
Backed by over three decades of experience in this field, Yamaha provides undeniable reliability and uncompromising audio quality. By integrating seamlessly with your current processes, the DM5 series sets a new standard for professionals who are ready to take their workflows to the next stage.
Features
SOUND - Everything you need to take your sound to the next stage -
The DM5 series honors Yamaha’s legacy of transparent sound , capturing sound direct from the stage that you can use to build and layer a mix that’s all your own. With powerful channel strip processing, effects, and plugins running on the PY-DSP, the DM5 series gives you everything you need to give free rein to your creativity and build your mix with confidence.
An extensive range of effects and plugins to shape your sound
The built-in multi-effects processor provides 43 high-quality effect types, delivering a powerful toolkit that expands your sound-shaping possibilities.
A full range of I/O to meet your needs
WORKFLOW - Built to evolve with the way you work -
Everyone has a different workflow, and having your own is key to consistently achieving your sound. The DM5 series lets you tailor the operating styles and parameters for each operator, giving you everything you need to make your current workflow smoother and more intuitive.
Customize the console to support efficient operations
Tailor Your System. Shape Your Workflow.
Configure DM5 series settings and add optional products to achieve usability and performance tailored to your operating style.
CONTROL - Experience refined precision
In a digital mixer, control functions are essential for achieving better sound, faster. The DM5 series offers seamless integration with other connected devices for two-way control, as well as remote operation capabilities that enhance your workflow. Together, these capabilities help bring performances to life.
Prepare offline, control from anywhere.
The DM5 series supports the DM Editor application for Windows and Mac, enabling offline setup and editing for advance preparation as well as online backup management. Both the DM5 series and DM7 series work with this application, with mutually compatible console data files for smooth data exchange. StageMix and MonitorMix provide convenient remote control from anywhere in the venue, while ProVisionaire Control PLUS offers a versatile custom control platform that helps bring your ideal system operation to life.
