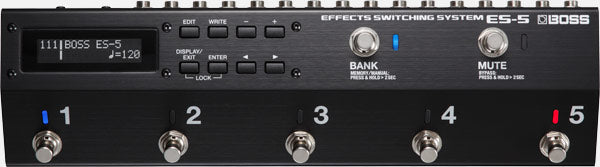

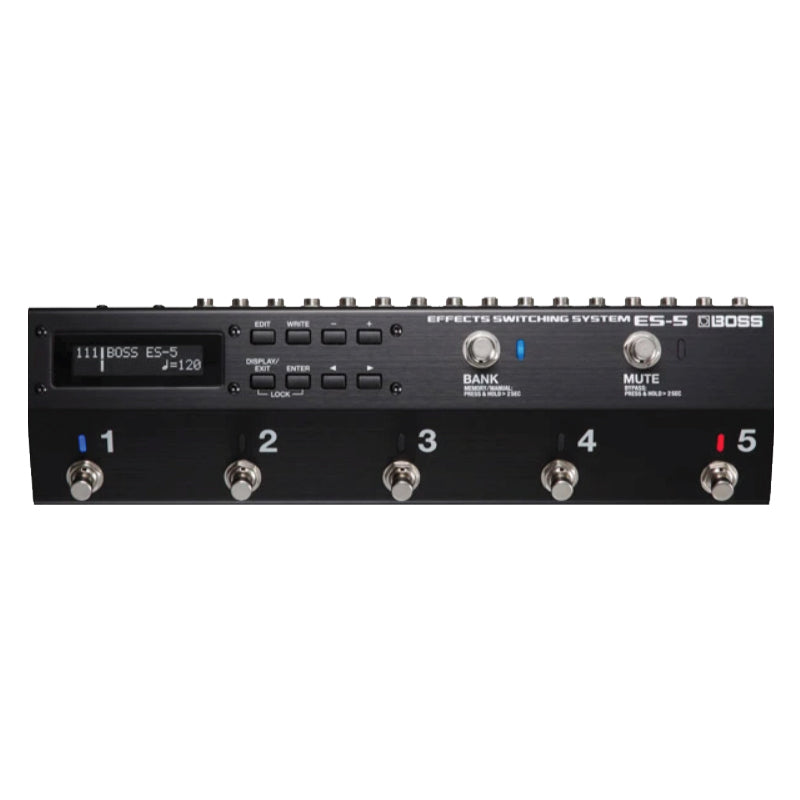

Based on the same concept and features as the flagship ES-8, the ES-5 is pared down to offer more practical and essential use options for typical guitarists and bassists, and is drastically reduced in size to fit ready-made, standard-size boards. The innovation in creativity of pedalboard systems made possible by the ES-8 has become more available and affordable. Expand your board just by one size and incorporate the ES-5, then you are in for a whole new world of musical expression, not just another utility tool. From this day on, the use of stompboxes will never be the same.
ModesMemory mode/Manual modeLoops5Patch Memory200Nominal Input LevelINPUT, RETURN 1--5: -10 dBuMaximum Input LevelINPUT, RETURN 1--5: +13 dBuInput ImpedanceINPUT: 1 M ohm (Buffer: On)Nominal Output LevelSEND 1--5, OUTPUT, TUNER: -10 dBuMaximum Output LevelSEND 1--5, OUTPUT, TUNER: +13 dBuOutput ImpedanceOUTPUT, TUNER: 1 k ohm (Mixer: On)Recommended Load Impedance10 k ohms or greaterControlsNUMBER 1--5 switch, BANK switch, MUTE switch
EDIT button, WRITE button, - button, + button, DISPLAY/EXIT button, ENTER button, Cursor left button, Cursor right buttonDisplay16 characters, 2 lines (backlit LCD)IndicatorNUMBER 1--5 indicator, BANK (MEMORY/MANUAL) indicator, MUTE indicatorConnectorsINPUT jack, SEND 1--5 jacks, RETURN 1--5 jacks, OUTPUT jack, TUNER jack: 1/4-inch phone type
EXT CTL CTL 1/2, CTL 3/4 jacks, CTL IN EXP CTL 1/2 jack: 1/4-inch TRS phone type
MIDI connectors (IN, OUT/THRU)
DC IN jackPower SupplyAC adaptorCurrent Draw125 mAAccessoriesAC adaptor
Rubber foot x 4
Owner's manual
Leaflet "USING THE UNIT SAFELY"Options (sold separately)Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression pedal: FV-500L, FV-500H, Roland EV-5
