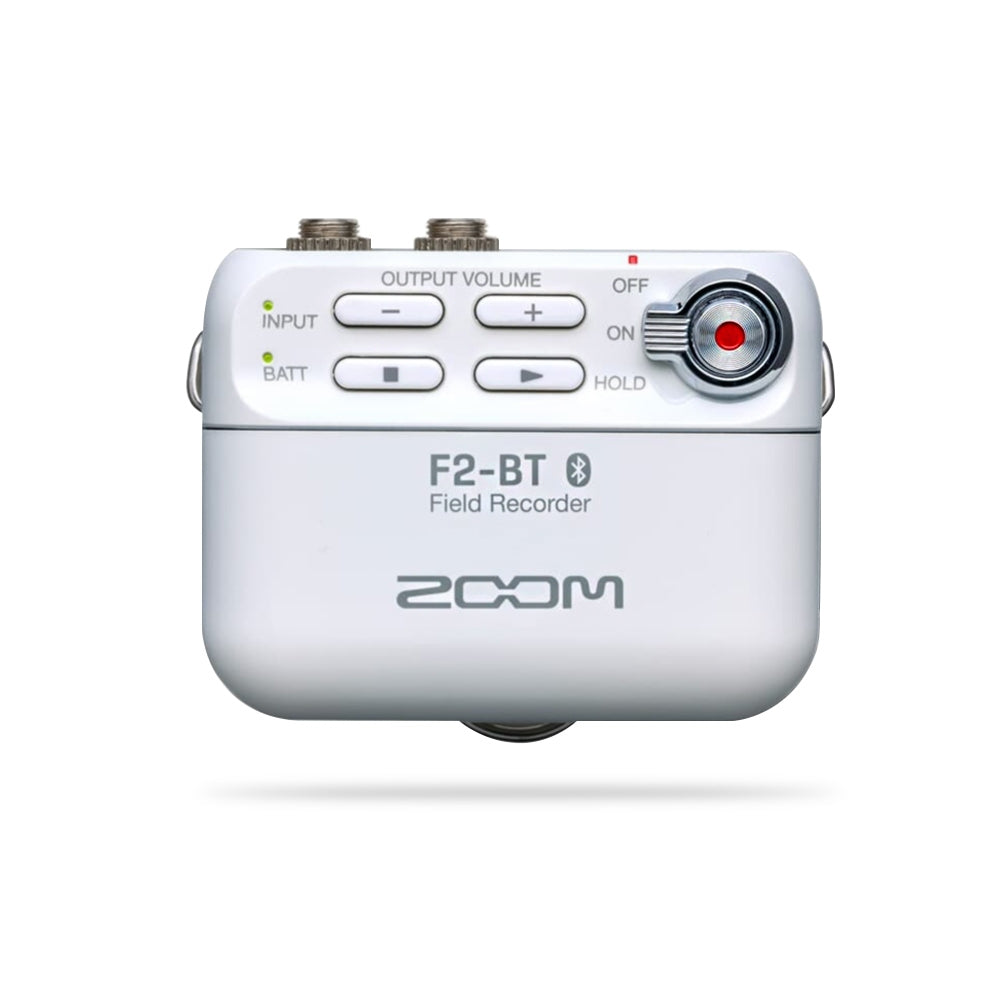

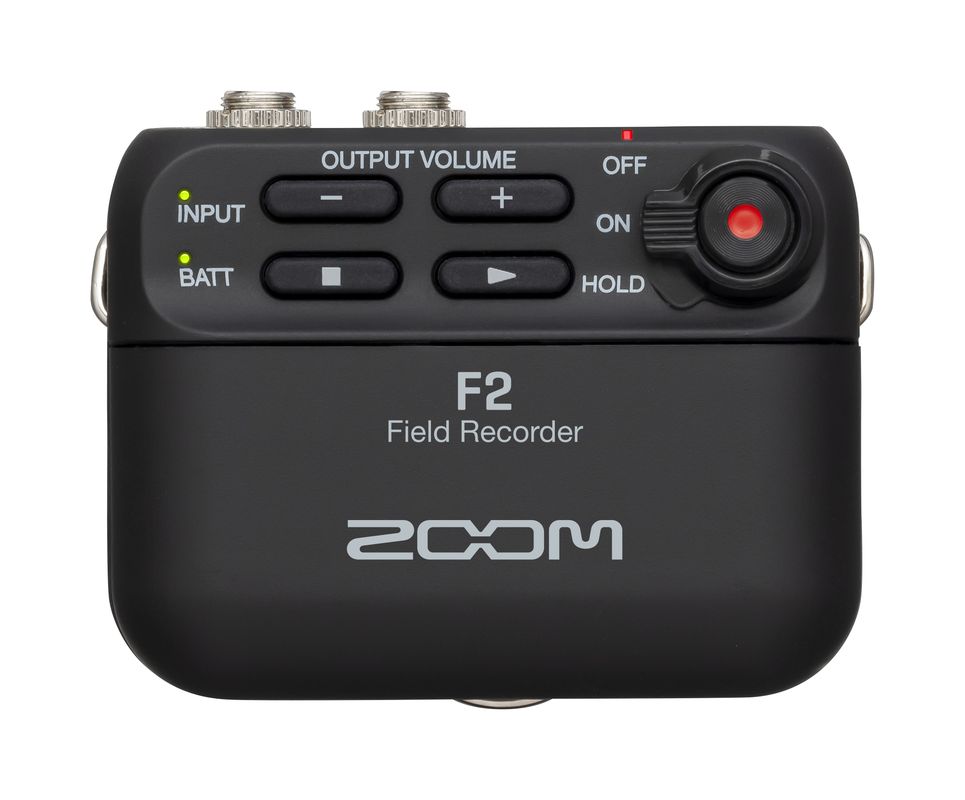

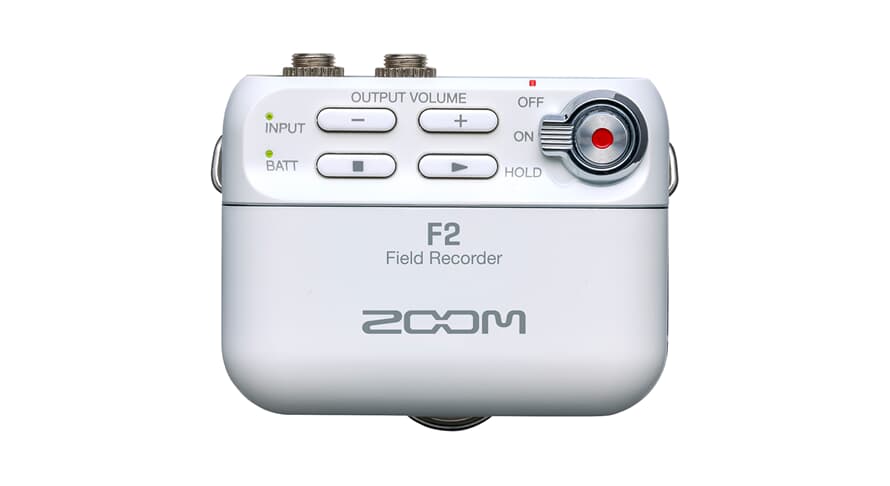

Zoom F2 / F2-BT Compact Field Recorder with Lavalier Mic
BY
ZOOM
PRODUCT CODE: Z12-F2BT/B
Original Price
$1,780.00
$1,480.00
32-BIT FLOAT TECHNOLOGY IN OUR SMALLEST, LIGHTEST RECORDER EVER
BUILT FOR BIG THINGS
For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.
*F2 is available with or without Bluetooth
FEATURES
- Light and compact audio recorder
- 32-Bit Float recording for full dynamic range and clip free recording
- No gain adjustment necessary
- Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
- Rec Hold function to avoid accidental operation of buttons
- 1/8" Mic In mini phone jack with Plug-in power (2.5V)
- Stereo ⅛" Phone/Line Output jack with dedicated volume control
- 80 Hz low cut filter
- High precision internal clock to avoid audio and video syncing issues
- Wireless timecode synchronization (F2-BT model only)*
- Records directly to micro SD, SDHC, and SDXC cards up to 512 GB
- USB-C for connection to F2 Editor for settings
- Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries
*F2-BT connection to UltraSync BLUE device by Timecode Systems is required.

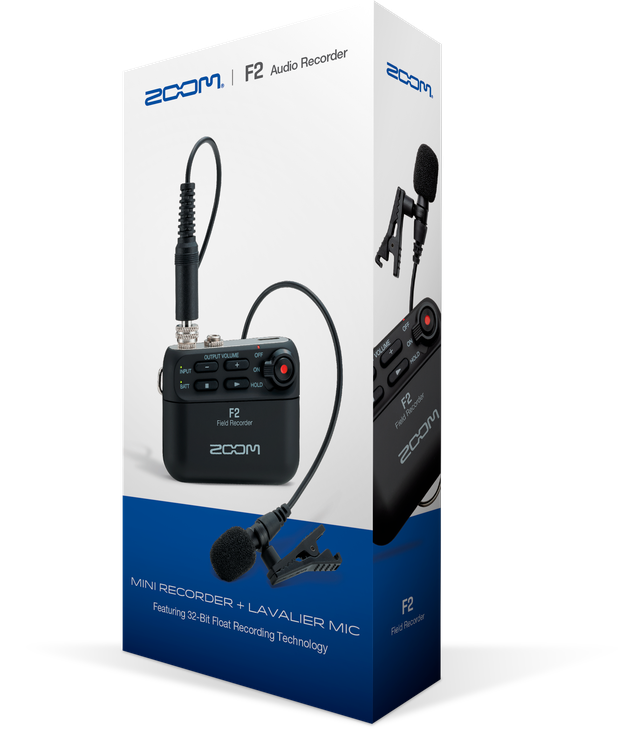

WHAT’S IN THE BOX
- F2 or F2-BT Field Recorder
- LMF-2 Lavalier Microphone
- 3 - WSL-1 Windscreen
- MCL-1 Mic Clip
- F2/F2-BT Operation Manual
SPECS
F2/F2-BT
INPUT
| CONNECTOR: | 3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V) |
| INPUT GAIN: | None (dual AD conversion system) |
| INPUT IMPEDANCE: | 2 kΩ or more |
| MAXIMUM INPUT LEVEL: | −5.5 dBu |
OUTPUT
| CONNECTOR: | 3.5 mm stereo mini (with screw lock) |
| MAXIMUM OUTPUT LEVEL: | 20 mW + 20 mW (into 32Ω load) |
RECORDING MEDIA
| CARDS COMPATIBLE WITH MICROSD/MICROSDHC/MICROSDXC SPECIFICATIONS (CLASS 4 OR HIGHER, 512 GB MAXIMUM) |
RECORDING FORMAT
| WAV: | 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported |
USB
| USB TYPE-C | |
| MASS STORAGE OPERATION | USB 2.0 High Speed |
| PC APP OPERATION | USB 2.0 High Speed |
POWER
| 2 AAA BATTERIES (ALKALINE, LITHIUM OR RECHARGEABLE NIMH BATTERIES) AC ADAPTER (ZOOM AD-17): DC 5 V/1 A |
MISCELLANEOUS
| BLUETOOTH: | Bluetooth Ver4.2 (F2-BT only) |
| CONTINUOUS RECORDING TIME WHEN USING LAVALIER MIC (48KHZ/32-BIT FLOAT): | Alkaline batteries: about 14 hours |
| NiMH batteries (750 mAh): about 10 hours Lithium batteries: about 18 hours | |
| • The above values are approximate. | |
| EXTERNAL DIMENSIONS: | 57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D) |
| WEIGHT (MAIN UNIT ONLY): | 32 g |

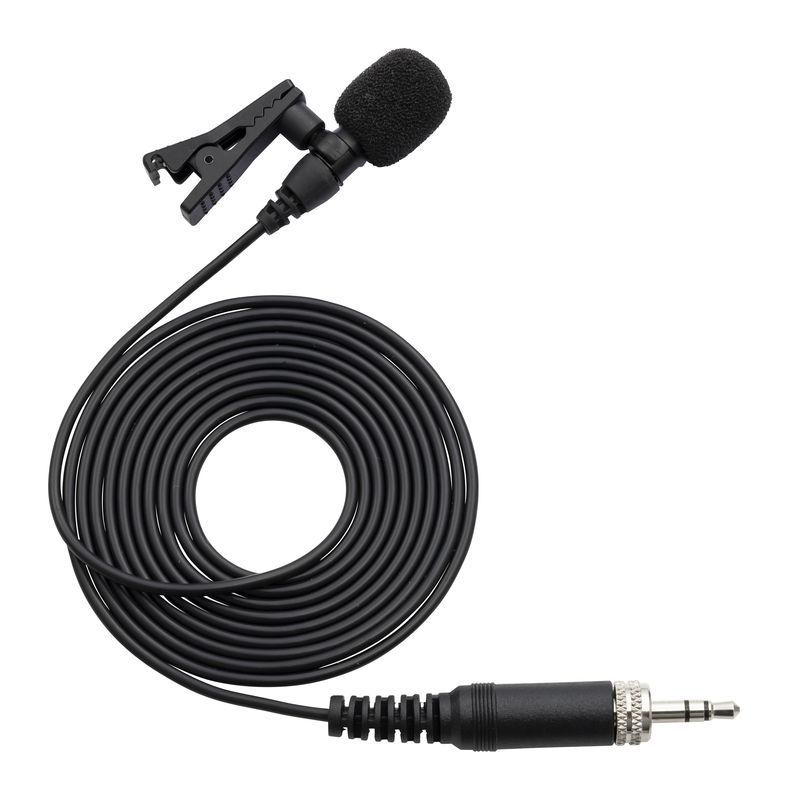

LMF-2
LAVALIER MIC
| CONNECTOR: | 3.5 mm stereo mini (with screw lock) |
| DIRECTIONALITY: | Omnidirectional |
| SENSITIVITY: | –32 dB/Pa at 1 kHz |
| MAXIMUM SOUND PRESSURE INPUT: | 115 dB SPL |
| CABLE LENGTH: | 160 cm |
